Off The Road Tire

GME802

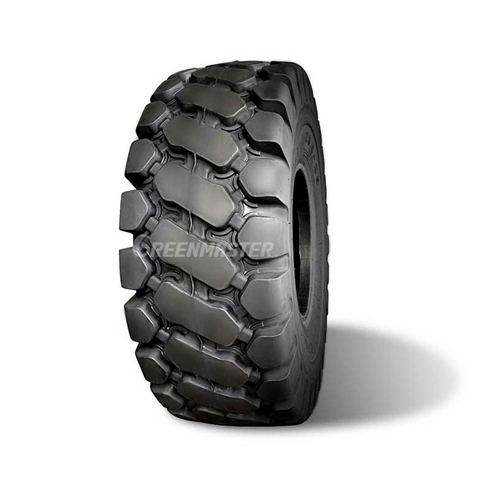

Built for versatility, E-4/L-4 tire delivers the performance that you're looking for with your loaders, graders and articulated dump trucks. The E-4/L-4 features a deep, cut-resistant tread and it suitable for multiple applications and conditions.

1. Widen and thicken carcass design，improves loading capability and increases impact resistance. Widen driving surface and deep groove pattern
block design, increases the wear resistance and improves its anti-puncture ability.

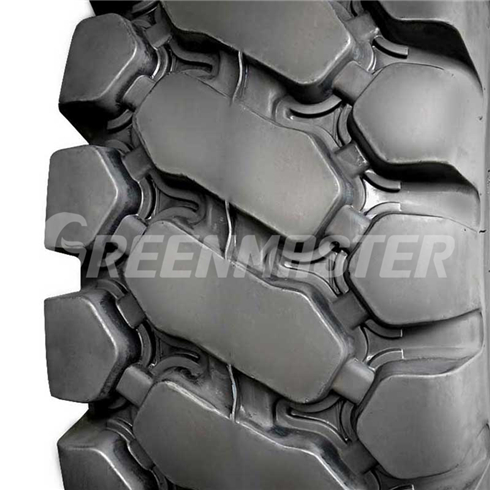

2. The staggered block pattern design greatly enhances the ground grip and wet skid resistance applies for wet slippery, muddy working conditions.

TRA Code	Size	Ply Rating	Tread Depth (mm)	TT/TL	Standard Rim	Overall Dimension (mm)		Max Load (kg)		Max Pressure (kpa)
						Section width	Overall Dia	50km/h	10km/h	50km/h	10km/h
E-4/L-4	23.5-25	40	46	TT/TL	19.50/2.5	595	1675	12000	18000	600	750
